Free Sample Questions to Practice 200-301 Certification Test Engine [Feb-2026]

2026 Valid 200-301 Real Exam Questions, practice CCNA

Cisco 200-301, also known as the Cisco Certified Network Associate (CCNA) certification exam, is a popular and highly respected IT certification exam. Cisco Certified Network Associate Exam certification is designed to validate the skills and knowledge of professionals who are seeking to build a career in networking or IT. 200-301 exam covers a broad range of topics related to networking, including network fundamentals, network access, IP connectivity, IP services, security fundamentals, and automation and programmability.

NEW QUESTION 646
Which type of wireless encryption is used for WPA2 in preshared key mode?

AES-128

TKIP with RC4

AES-256

RC4

Section: Security Fundamentals

NEW QUESTION 647
A frame that enters a switch fails the Frame Check Sequence. Which two interface counters are incremented? (Choose two)

runts

giants

frame

CRC

input errors

Whenever the physical transmission has problems, the receiving device might receive a frame whose bits have changed values. These frames do not pass the error detection logic as implemented in the FCS field in the Ethernet trailer. The receiving device discards the frame and counts it as some kind of input error.
Cisco switches list this error as a CRC error. Cyclic redundancy check (CRC) is a term related to how the FCS math detects an error.
The “input errors” includes runts, giants, no buffer, CRC, frame, overrun, and ignored counts.
The output below show the interface counters with the “show interface s0/0/0” command:

NEW QUESTION 648
Refer to the exhibit. Which two statements about the interface that generated the output are true?
(Choose two)

learned MAC addresses are deleted after five minutes of inactivity

the interface is error-diabled if packets arrive from a new unknown source address

it has dynamically learned two secure MAC addresses

it has dynamically learned three secure MAC addresses

the security violation counter increments if packets arrive from a new unknown source address

NEW QUESTION 649
Which effete does the aaa new-model configuration command have?

It enables AAA services on the device

It configures the device to connect to a RADIUS server for AAA

It associates a RADIUS server to an group.

It configures a local user on the device.

NEW QUESTION 650
Which set of 2.4 GHz nonoverlapping wireless channels is standard in the United States?

channels 2, 7, 9, and 11

channels 1, 6, 11, and 14

channels 2, 7, and 11

channels 1, 6, and 11

NEW QUESTION 651
Refer to the exhibit.

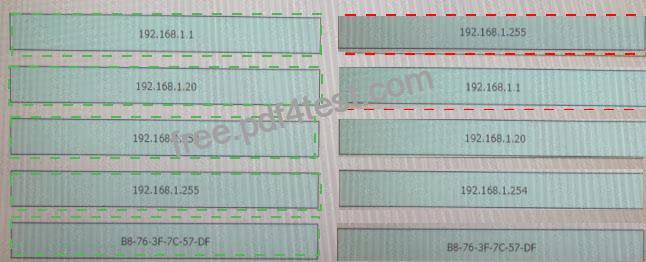

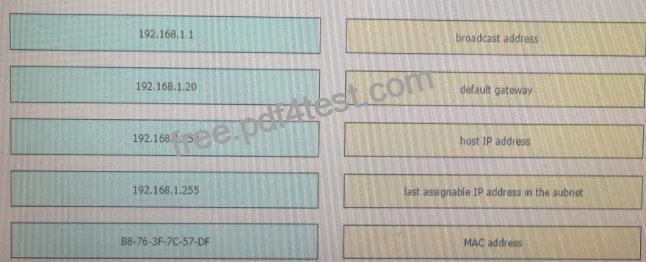

An engineer is tasked with verifying network configuration parameters on a client workstation to report back to the team lead. Drag and drop the node identifiers from the left onto the network parameters on the right.

NEW QUESTION 652

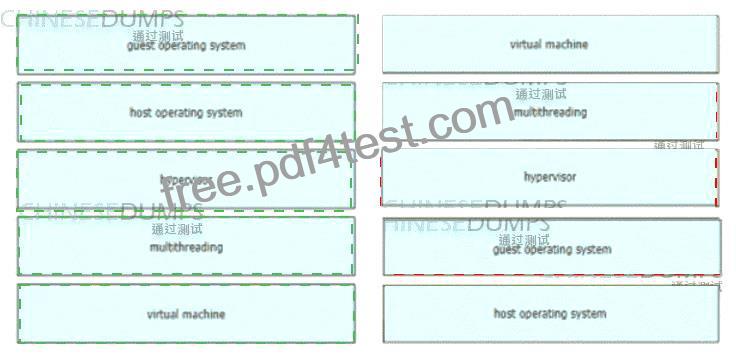

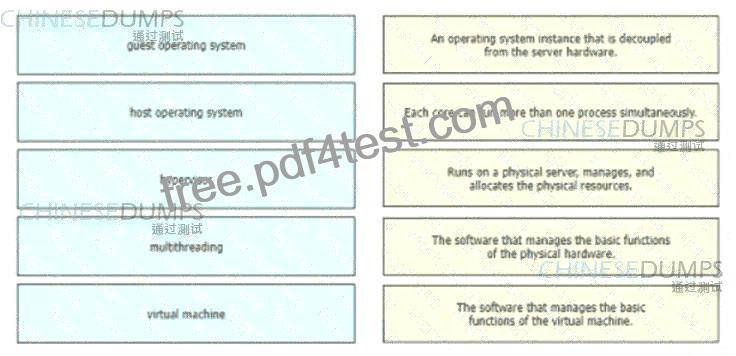

Drag and drop the virtualization concepts from the left onto the matching statements on the right.

Explanation:

NEW QUESTION 653

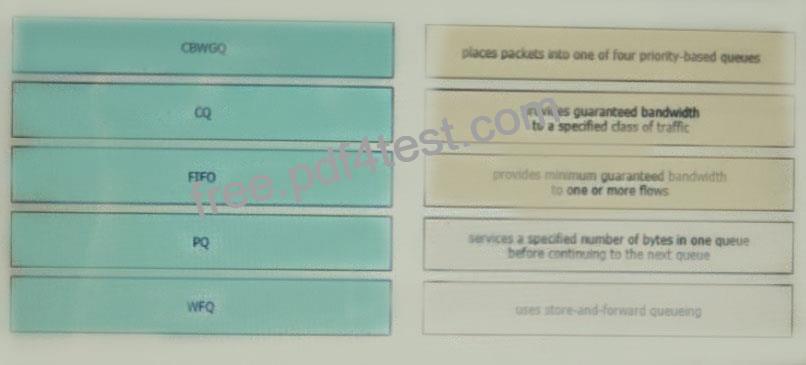

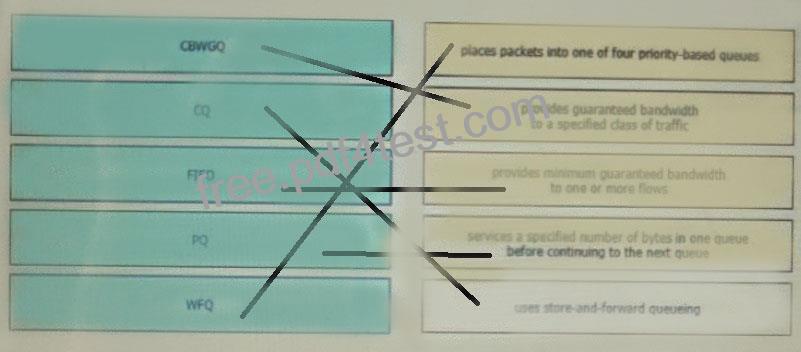

Drag and drop the QoS congestion management terms from the left onto the description on the right.

NEW QUESTION 654

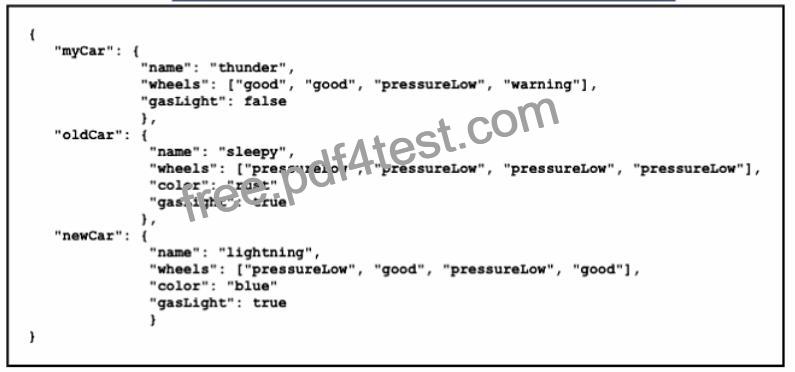

Refer to the exhibit.

In which structure does the word “warning” directly reside?

array

object

Boolean

string

NEW QUESTION 655
Drag and Drop Question

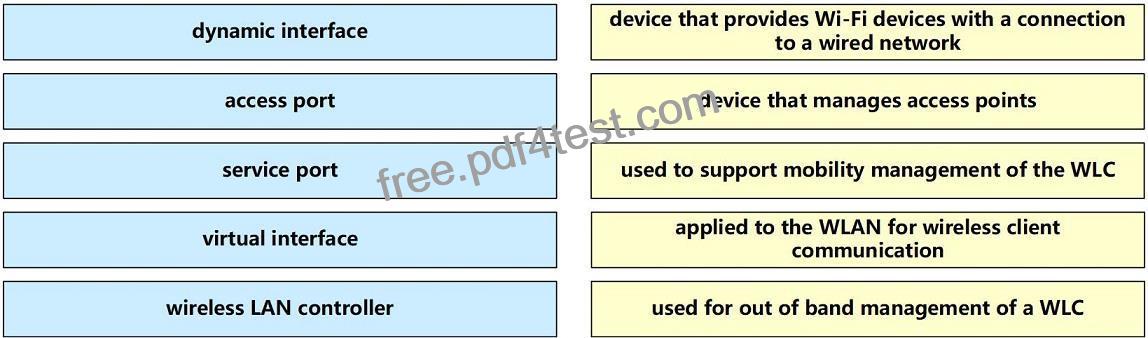

Drag and drop the WLAN components from the left onto the correct descriptions on the right.
Select and Place:

Explanation:
The service port can be used management purposes, primarily for out-of-band management. However, AP management traffic is not possible across the service port. In most cases, the service port is used as a “last resort” means of accessing the controller GUI for management purposes. For example, in the case where the system distribution ports on the controller are down or their communication to the wired network is otherwise degraded.
A dynamic interface with the Dynamic AP Management option enabled is used as the tunnel source for packets from the controller to the access point and as the destination for CAPWAP packets from the access point to the controller.
The virtual interface is used to support mobility management, Dynamic Host Configuration Protocol (DHCP) relay, and embedded Layer 3 security such as guest web authentication. It also maintains the DNS gateway host name used by Layer 3 security and mobility managers to verify the source of certificates when Layer 3 web authorization is enabled.
Reference: https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-5/config-guide/b_cg85/ports_and_interfaces.html

NEW QUESTION 656
What are two functions of a Layer 2 switch? (Choose two.)

acts as a central point for association and authentication servers

selects the best route between networks on a WAN

moves packets within a VLAN

moves packets between different VLANs

makes forwarding decisions based on the MAC address of a packet

Section: Network Fundamentals

NEW QUESTION 657
Refer to the exhibit.

Which two commands when used together create port channel 10? (Choose two.)

int range g0/0-1
channel-group 10 mode active

int range g0/0-1 chanm.l-group 10 mode desirable

int range g0/0-1
channel-group 10 mode passive

int range g0/0-1 channel-group 10 mode auto

int range g0/0-1 channel-group 10 mode on

NEW QUESTION 658

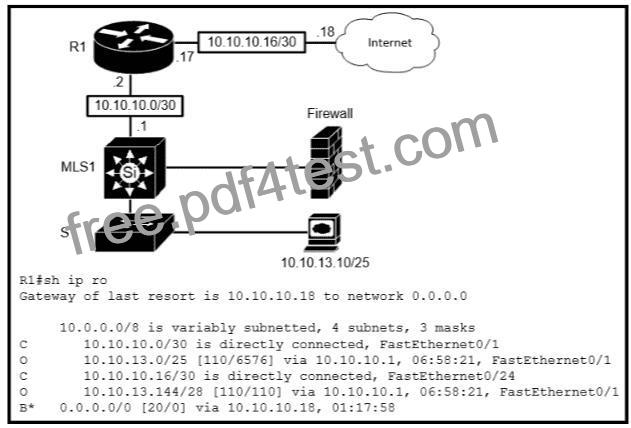

Refer to the exhibit.

Which type of route does R1 use to reach host 10.10.13.10/32?

floating static route

host route

default route

network route

From the output, we see R1 will use the entry “O 10.10.13.0/25 [110/4576] via 10.10.10.1, …” to reach host
10.10.13.10. This is a network route.
Note: “B* 0.0.0.0/0 …” is a default route.

NEW QUESTION 659

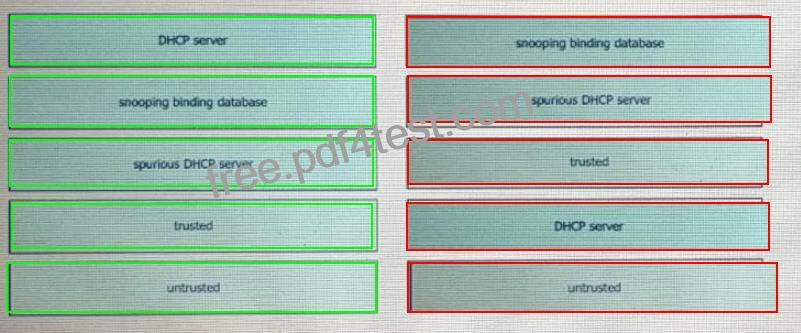

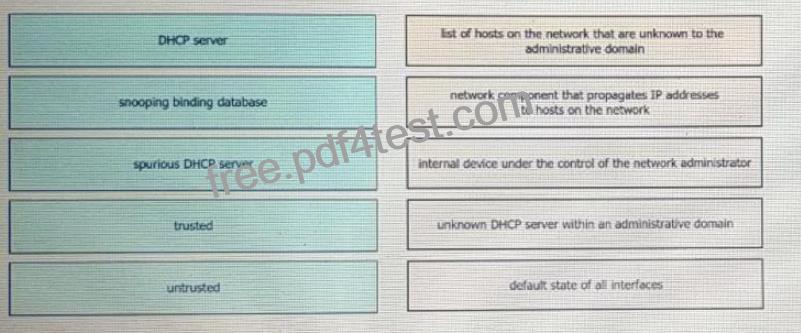

Drag and drop the DHCP snooping terms from the left onto the descriptions on the right.

NEW QUESTION 660
Which two WAN architecture options help a business improve scalability and reliability for the network?
(Choose two.)

asynchronous routing

single-homed branches

dual-homed branches

static routing

dynamic routing

NEW QUESTION 661
Refer to the exhibit An IPv6 address must be obtained automatically on the LAN interface on R1 Which command must be implemented to accomplish the task?

Ipv6 address 2001:dbB:d8d2:1008:4343:61:0010::/64

Ipv6 address autoconfig

Ipv6 address fe80::/10

Ipv6 address dhcp

NEW QUESTION 662

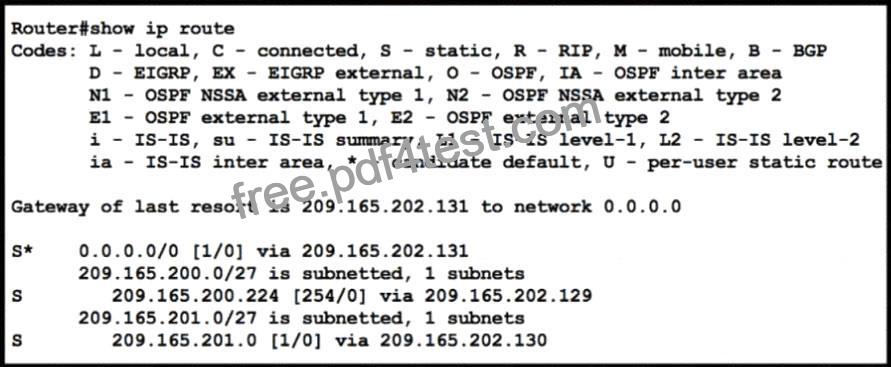

Refer to the exhibit.

Which command configures a floating static route to provide a backup to the primary link?

ip route 0.0.0.0 0.0.0.0 209.165.202.131

ip route 209.165.201.0 255.255.255.224 209.165.202.130

ip route 0.0.0.0 0.0.0.0 209.165.200.224

ip route 209.165.200.224 255.255.255.224 209.165.202.129 254

NEW QUESTION 663
Which two encoding methods are supported by REST APIs? (Choose two)

YAML

JSON

EBCDIC

SGML

XML

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/rest_cfg/2_1_x/b_Cisco_APIC_REST_API_Configuration_Guide/b_Cisco_APIC_REST_API_Configuration_Guide_chapter_01.html Reference:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus1000/sw/5_x/rest_api_config/b_Cisco_N1KV_VMware_REST_API_Config_5x/b_Cisco_N1KV_VMware_REST_API_Config_5x_chapter_010.pdf The Application Policy Infrastructure Controller (APIC) REST API is a programmatic interface that uses REST architecture. The API accepts and returns HTTP (not enabled by default) or HTTPS messages that contain JavaScript Object Notation (JSON) or Extensible Markup Language (XML) documents.

Loading …

Cisco 200-301 exam is a comprehensive exam that covers a wide range of topics related to networking. 200-301 exam consists of 120 questions that need to be answered in 120 minutes. 200-301 exam is computer-based and can be taken at a Pearson VUE test center. The passing score for the exam is 825 out of 1000. 200-301 exam fees vary from country to country, and the cost of the exam is generally around $300.
